JC261

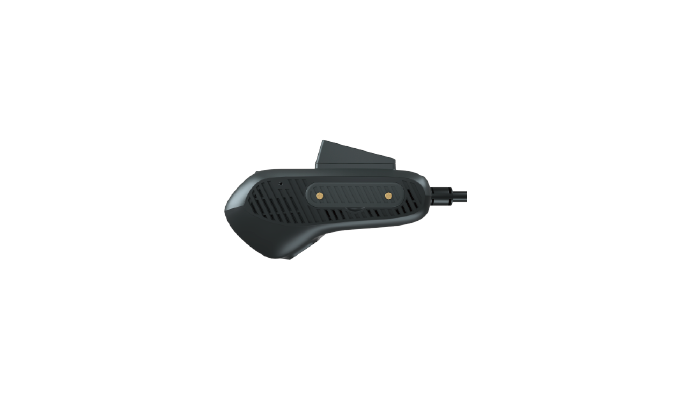

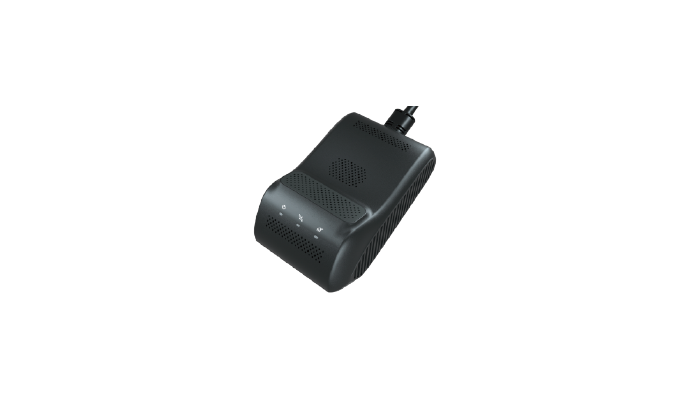

JC261 Dual-Channel Al DashCam
Download Resources
Two cameras, smarter decisions. One faces the road, the other adapts to your choice — monitor the driver, the cabin, the side, or the rear. Spots risky driving behavior. Fatigue, phone use, smoking, and more. Detected early. Sees hazards ahead. Forward collision risk and lane drift, flagged in time. Checks the seatbelt. So every ride starts secure.The right face. The right driver. Knows who’s behind the wheel. Alerts if it’s someone else. Get real-time alerts for collisions, vibrations, SOS, speeding and risky driving. Stay connected to everything that matters. TTL interface lets you connect fuel and temperature sensors, as well as RFID and magnetic card readers for driver authentication.
Two Views, One Complete Vision
Two cameras, smarter decisions. One faces the road, the other adapts to your choice — monitor the driver, the cabin, the side, or the rear.
Advanced Driver Assistance System (ADAS)
Sees hazards ahead. Forward collision risk and lane drift, flagged in time.
Critical Moments, Not Missed.
Get real-time alerts for collisions, vibrations, SOS, speeding and risky driving. Stay connected to everything that matters.
Ideal Applications
Fleet Management
- Offline record in no network zone
- Driver behavior analysis
- Realtime data
Personal Vehicles
- Theft prevention
- Real time notifications
- Accurate Km.
Commercials Vehicle
- Monitor your vehicle from any where
- Critical alert video clips
- Multiple alert's
Technical Specifications
Engineering excellence in every detail.
GPS Specifications
| Positioning System | GPS |
Sensor
| 3-axis |
Network Specifications
| Network Type | 4G LTE Cat 4 |
| SIM Card | Standard Nano SIM |
Camera Specifications
| Front Camera (Main) | 1920×1080/25FPS/F2.2/Full color/85° (HFoV) |
| Peripheral Camera (Optional) | CI01: 1280×720/15FPS/F2.0/Full color in daytime & monochrome in dim light/100° (HFoV) |
| CI03: 1280×720/15FPS/F2.4/Full color in daytime & monochrome in dim light/119° (HFoV) | |
| CE01: 1280×720/15FPS/F2.0/Full color/IP67/125° (HFoV) | |
| JC170: 1280×720/15FPS/F2.4/Monochrome/56° (HFoV) | |
| Video Format | .ts |
Physical Specifications
| Dimensions | 109*69*52mm |
| Weight | 233g |
| Color | Black |
| Certifications | CE/FCC/RoHS |
Power Specifications
| Operating Voltage | DC 9–30V |
| Power Supply | Power cable: B+/ACC/GND |
| Operating Temperature | –20°C to +65°C |
| Storage Temperature | –30°C to +85°C |
Additional Features
| LED indication | Red (Power), Blue (Cellular), Green (GNSS), White (AI) |
| Memory Support | TF card (Up to 256GB) |
| Bluetooth | N/A |
| Digital I/Os | 2*SOS, 2*Relay, 2*Reserved inputs |
| LED Indication | Red (Power), Blue (Cellular), Green (GNSS) |
| Interface | Micro USB*1, SOS*1, TTL*1, Relay*1 |
| Sensor | 3-Axis accelerometer |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
Comprehensive Support
We're with you every step of the way.
Warranty Information
| Warranty Period | 1 Years from date of purchase |
| Coverage | Free replacement for defective units (excluding physical damage) |
| Extended Warranty | Available for purchase (up to 5 years total coverage) |
Technical Support
| Support Hours | 10 am to 6 pm phone and email support |
| Response Time | Within 2 hours for critical issues |
| Support Channels | Email: supportmark@iconcox.in |
Firmware & Updates
| Update Frequency | Quarterly feature updates, monthly security patches |
| Update Method | OTA (Over-the-Air) |
| Compatibility | firmware updates are not backward compatible |
